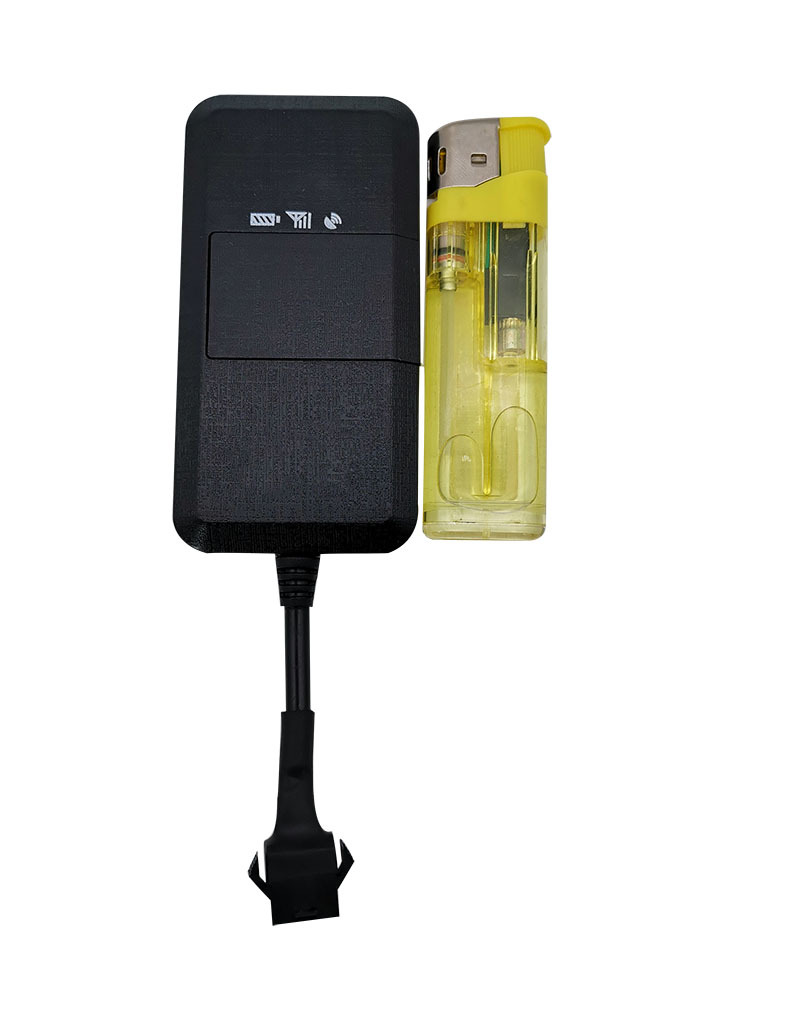

Motorcycle GPS Tracker

KS11

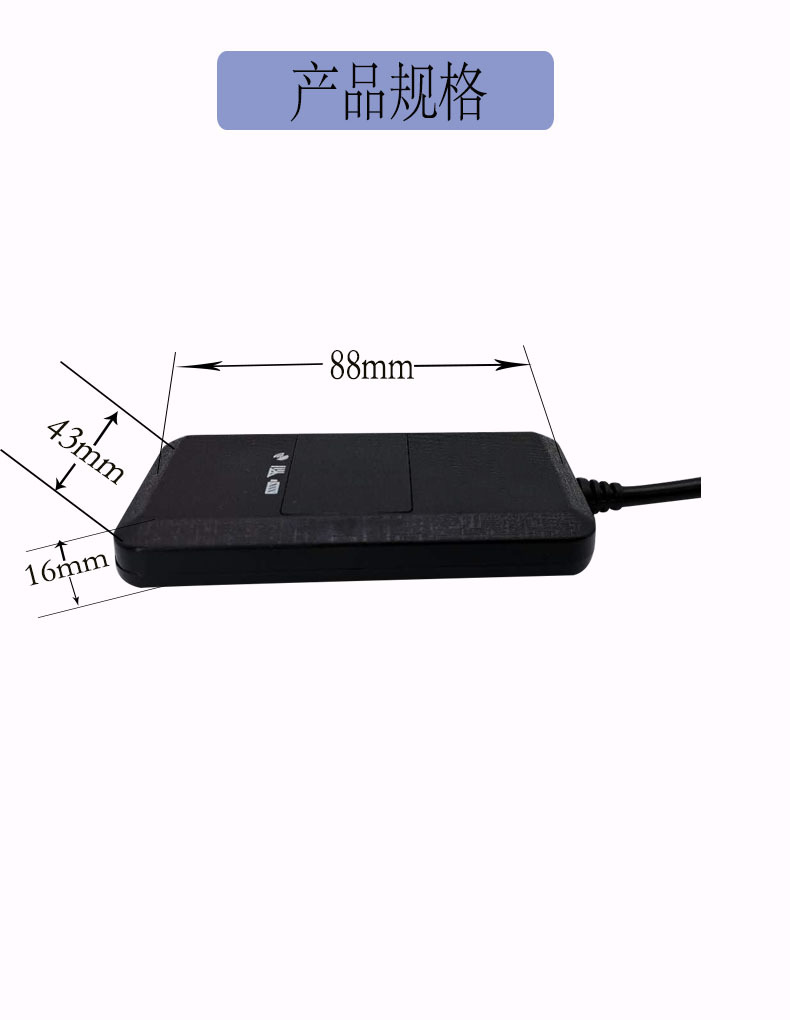

Overall Size:88 * 43 * 16 (mm)
Net Weight:120g
Network:4G
Band: LTE FDD, LTE TDD
Product description: 4G Motorcycle GPS tracker KS11
INQUIRY

Introduction

This product is a vehicle positioning terminal based on the industrial 4G full Netcom (4G, 3G, 2G) module, supporting GPS / BD, AGPS, base station and other positioning functions, with accurate positioning; It has the functions of ACC detection, remote oil and power cut-off, vibration alarm, SOS alarm (reserved), remote wireless upgrade and other functions, It supports 4G versions in different regions.

Specification

Power Supply	9V-36V
Dimension	88x 43 x 16mm
Weight	120g
Backup Battery	120mAh
Normal Power Consumption	12V/60mA (Averge); sleep 12V/<5mA;
Operation Temperature	-20° to 75° C
Humidity	5% to85% Non-condensing
Memory	Could store 10000 location datum when there is no signal
Sensor	motion-sensor
Frequency	LTE-TDD:B38/B39/B40/B41 LTE-FDD:B1/B3/B5/B8 WCDMA/HSPA:B1/B8 TD-SCDMA:B34/B39 CDMA/EVDO:BC0 GSM/GPRS/EDGE:900/1800MHZ
Position Accuracy	Autonomous: < 5m CEP
Frequency	GPS L1: 1575.42±1.023MHz
Frequency	BD(Beidou) B1: 1561.098±2.046MHz
TTFF (Open Sky)	Cold Start: <32s
	Warm Start: <5s
	Hot Start: <1s
Reacquisition Time	<1s

Device light description

Light	Signal	Normal status
Red light 1	Power	external main powered, light constant on; only battery powered, Light flashing;
Blue light 2	GSM signal	net is ok, the blue LED Light flashing; No net signal light constant on
yellow light 3	GPS signal	the yellow LED Light flashing after receive GPS signal; Light constant on before receive GSM/GPS signal
