GT25-4G

Thank you very much for using GPS TRACKER, the user manual will guide how to operate this product, please read it carefully before using it in order to get the correct method of operation. If the appearance, color and accessories of this product are modified, please refer to the actual product. The manufacturer is not liable for faults and omissions which in the user manual.

1、Product functions & Parameters

1.1 Product functions

Location inquiry, geo-fence, vibration alarm, over-speed alarm, historical route playback, remote monitor.

1.2 Parameters

●QUECTEL EC20 module (different modules for different countries, the following are the frequency bands for EC20, different countries with different modules and frequency)

4G:LTE FDD:B1/B3/B5/B8

      LTE TDD：B34/B38/B39/B40/B41

  3G :WCDMA:B1/B8

     :TD-SCDMA:B34/B39

2G :CDMA:BC0  900/1800MHz

●Wide voltage input range: 3.4- 4.5V;

●Location time: average warm start:≤3sec(open sky)

                 Average cold start:≤35sec(open sky)

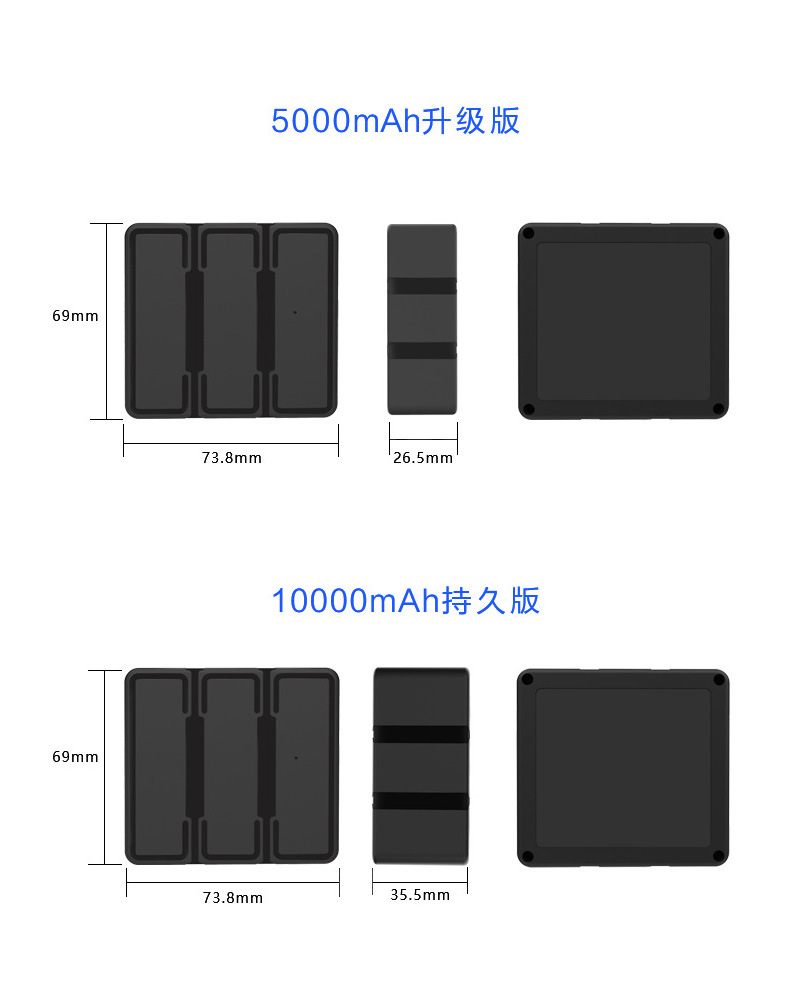

●Device dimensions: 73.8mm × 69mm × 26.5mm (5000mA);

                  73.8mm × 69mm × 35.5mm (10000mA)

●Location accuracy:≤10 meters;

●Working Temp:-20℃ - 75℃

2、Product accessories and LED light status

 2.1 Product accessories:

Standard: the device/ charging cable / quick installation user manual / double-sided stickers

Optional: powerful magnetic

2.2 Device LED light status

2.2.1 Red LED (Power supply/Charging indicator)

2.2.2 Yellow LED(GSM signal)

2.2.3 Blue LED (GPS signal)
