Accessories

  • SIM800C
  • SIM800C
SIM800C SIM800C

SIM800C

  • Overall Size:17.6 * 15.7 * 2.3 (mm)
  • Net Weight:1.3g
  • Network:2G
  • Band:GSM/GPRS 850/900/1800/1900MHz
  • Product description: SIM800C 2G GSM module
  • INQUIRY

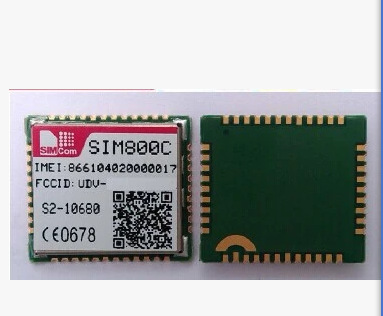

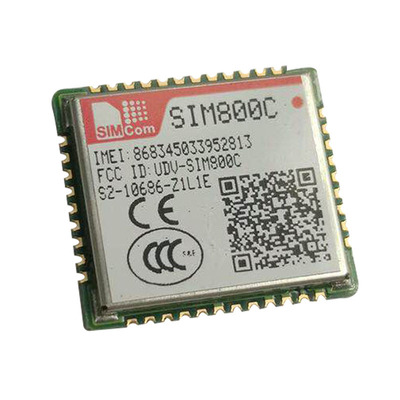

SIM800C SIMCOM_GSM/GPRS module

SIM800C is a four-frequency GSM/GPRS module for castle hole package. Its stable performance, compact appearance, cost-effective, can meet a variety of customer needs.

SIM800C works at GSM/GPRS 850/900/1800/1900mhz, and can transmit voice, SMS, and data with low power consumption. The size of SIM800C is 17.6*15.7*2.3mm, which can be used for various compact product design requirements.

The main features

* 4 frequency MHZ 850/900/1800/1900

* GPRS multi-slot class 12/10

* GPRS mobile station class B

* Meet the GSM 2/2+ standard

-- Class 4 (2 W @850/900 MHz)

-- Class 1 (1 W @ 1800/1900mhz)

* Bluetooth: 3.0+EDR

* Size: 17.6*15.7*2.3mm

* Weight: 1.3g

* Control via AT command (3GPP TS27.007,27.005 and SIMCOM enhanced AT command set)

* SIM Application Kit

* Supply voltage range: 3.4V ~ 4.4V

* low power consumption

* Operating temperature range: -40℃ ~ +85℃

The data transfer

* GPRS Class 12: maximum 85.6 KBPS (downlink rate)

* support PBCCH

* Coding schemes CS 1, 2, 3, 4

* PPP-stack

* USSD

SMS

* Point-to-point MO and MT

* SMS broadcast

* Text and PDU modes

The software features

* 0710 MUX protocol

* Embedded TCP/UDP protocol

* FTP/HTTP

* MMS

* Email

* DTMF detection

* Interference detection

* the recording

* SSL

* Bluetooth (optional)

voice

* Tricodec

-- Half rate (HR)

-- Full rate (FR)

-- Enhanced full Rate (EFR)

* AMR

-- Half rate (HR)

-- Full rate (FR)

* Support echo suppression algorithm

interface

42 SMT pins

* One analog audio interface

* support the RTC

* USB interface

* Serial interface

* SIM card interface (3V/ 1.8V)

* GPIO

* ADC

* GSM antenna pad

* BT antenna pad

compatibility

* AT cellular command interface

* Advanced version supports TTS(Chinese) and EAT functions
